Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Disconnect the negative battery terminal.

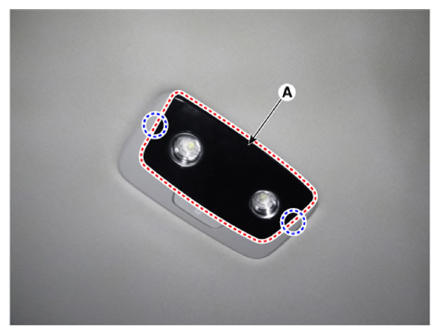

Remove the room lamp lens (A) by using a flat-tip screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

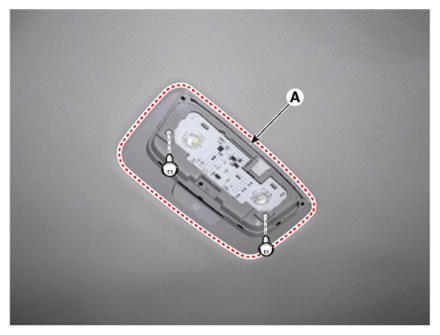

Remove the room lamp (A) by loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

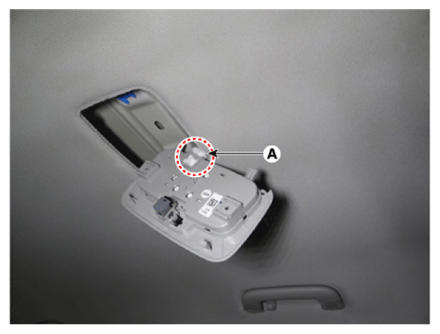

Disconnect the room lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

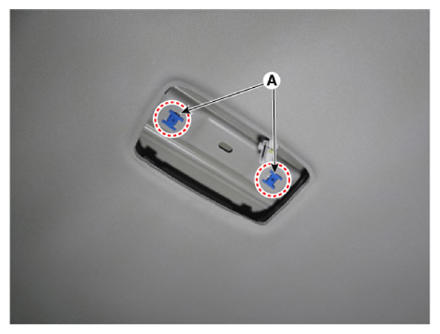

Remove the room lamp mounting clips (A).

Courtesy of KIA MOTORS AMERICA, INC.
