Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to " Replacement  ")

  3. Remove the crash pad garnish [LH].

    (Refer to " Crash pad garnish [LH]  ")

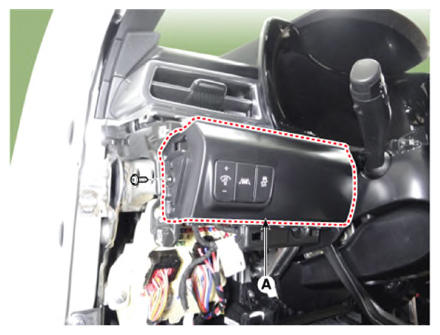

  4. Remove the crash pad lower garnish [LH] (A) by loosening the mounting screw.
    G13836142Courtesy of KIA MOTORS AMERICA, INC.

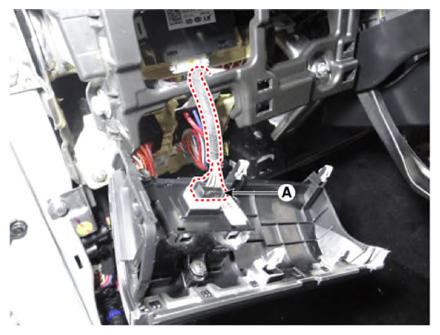

  5. Disconnect the connector (A) from the crash pad lower garnish [LH].
    G13836143Courtesy of KIA MOTORS AMERICA, INC.

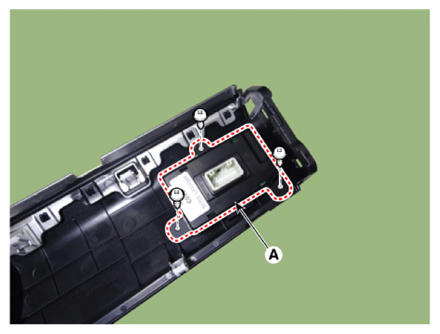

  6. Remove the side crash pad switch (A) by loosening the mounting screws.
    G13836144Courtesy of KIA MOTORS AMERICA, INC.
