Repair Procedures: Removal: [Outside]

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

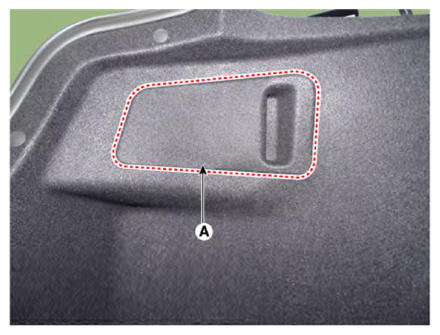

  2. Remove the rear combination lamp service cover (A).
    G13836132Courtesy of KIA MOTORS AMERICA, INC.

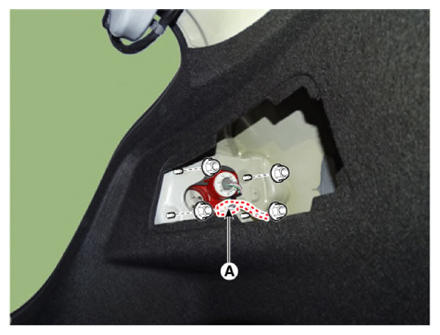

  3. Disconnect the rear combination lamp connector (A) after loosening the nuts.
    G13836133Courtesy of KIA MOTORS AMERICA, INC.

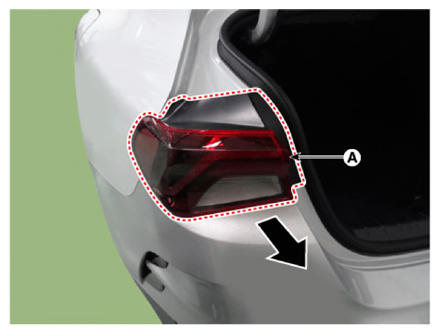

  4. Remove the rear combination lamp (A).
    G13836134Courtesy of KIA MOTORS AMERICA, INC.
