Repair Procedures: Removal: [Center]

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the trunk lid trim.

    (Refer to " Replacement  ")

  3. Disconnect the rear combination lamp connector (A) after loosening the nuts.

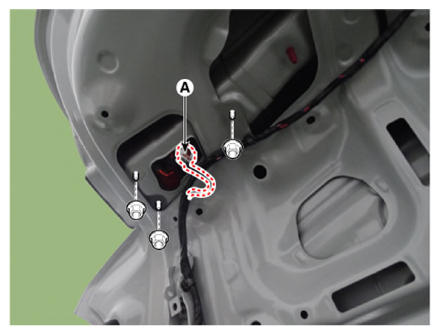

    [LH]

    G13836135Courtesy of KIA MOTORS AMERICA, INC.

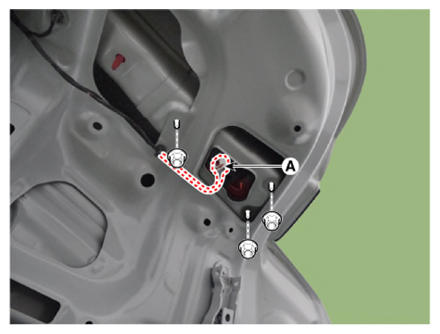

    [RH]

    G13836136Courtesy of KIA MOTORS AMERICA, INC.

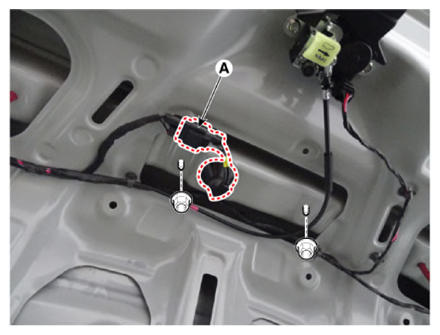

    [Center]

    G13836137Courtesy of KIA MOTORS AMERICA, INC.

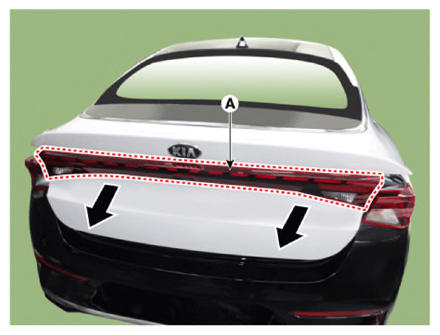

  4. Remove the rear combination lamp (A).
    G13836138Courtesy of KIA MOTORS AMERICA, INC.
