Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Disconnect the negative battery terminal.

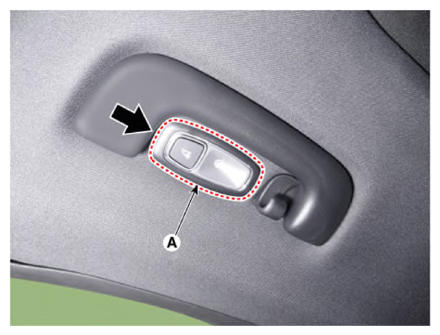

Remove the personal lamp (A) by using a flat-tip screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

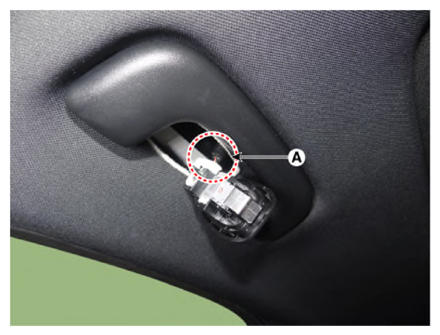

Disconnect the personal lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
