Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to " Replacement  ")

  3. Remove the crash pad garnish [LH].

    (Refer to " Crash pad garnish [LH]  ")

  4. Remove the crash pad lower garnish [LH] (A) by loosening the mounting screw.

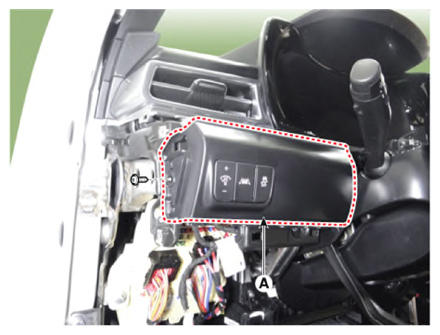

    G13836160Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the connector (A) from the crash pad lower garnish [LH].

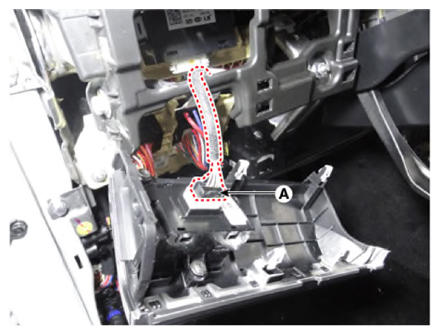

    G13836161Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the side air vent (A) by using a flat-tip screwdriver or remover.

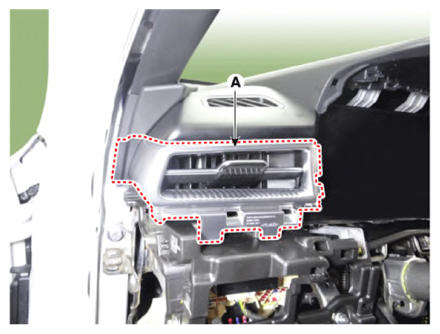

    G13836162Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the mood lamp unit connector (A).

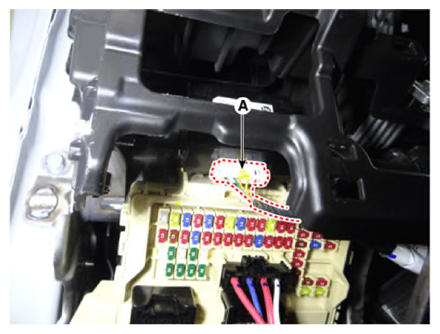

    G13836163Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the mood lamp unit (A) by loosening the mounting nuts.

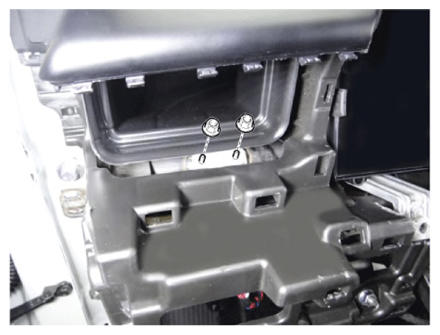

    G13836164Courtesy of KIA MOTORS AMERICA, INC.

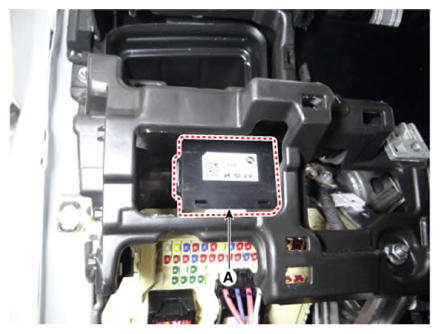

    G13836165Courtesy of KIA MOTORS AMERICA, INC.
