Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad garnish [RH].

    (Refer to " Crash pad garnish [RH]  ")

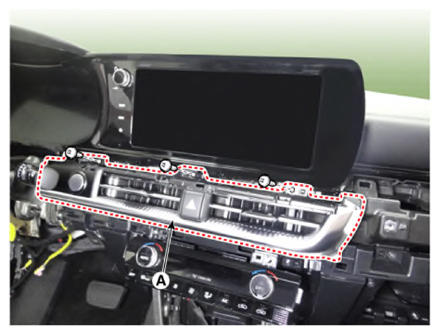

  3. Remove the center air vent garnish (A) by loosening the mounting screws.
    G13836092Courtesy of KIA MOTORS AMERICA, INC.

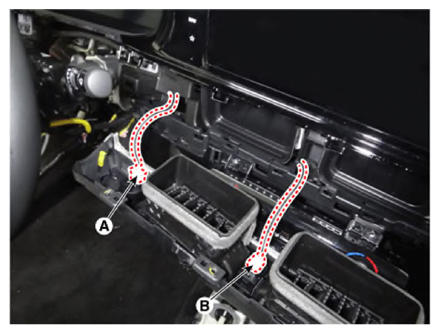

  4. Disconnect the start/stop button connector (A) and hazard lamp switch connector (B).
    G13836093Courtesy of KIA MOTORS AMERICA, INC.

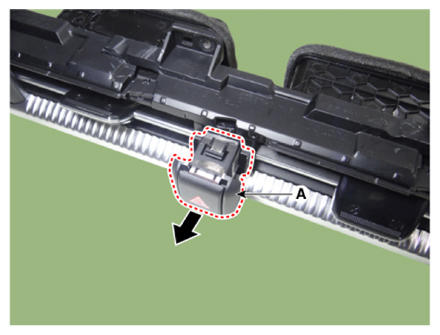

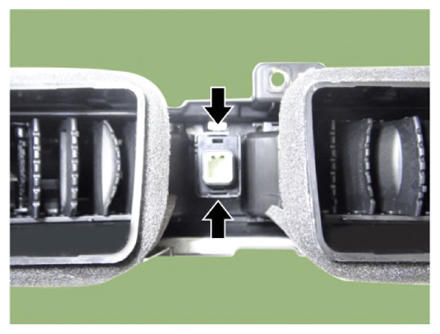

  5. Remove the hazard lamp switch (A) by pressing the hooks.
    G13836094Courtesy of KIA MOTORS AMERICA, INC.
    G13836095Courtesy of KIA MOTORS AMERICA, INC.
