Fog Lamp Aiming Point
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|

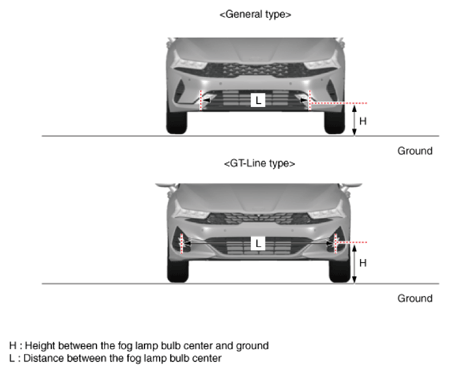

[General type]
| Vehicle condition |
H |
L |
Note |
| Empty |
338 (13.3070) |
1052 (41.4173) |
ALL DIM in mm (in.) |
| 1 person on board |
333 (13.1102) |
[GT-Line type]
| Vehicle condition |
H |
L |
Note |
| Empty |
377 (14.8425) |
1527 (60.1181) |
ALL DIM in mm (in.) |
| 1 person on board |
372 (14.6456) |
- Turn the front fog lamp on without the driver aboard.

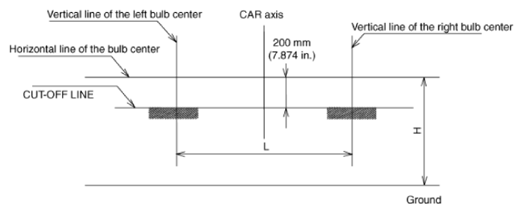

- The cut-off line should be projected in the allowable range (shaded region).
