Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to " Removal  ")

  3. Loosen the mounting screws (A).

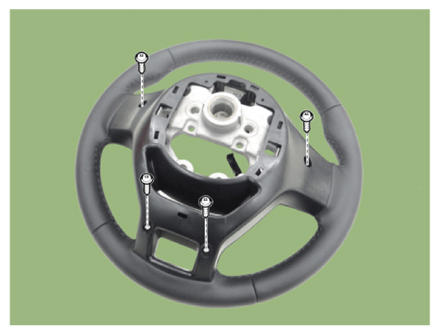

    G13835883Courtesy of KIA MOTORS AMERICA, INC.

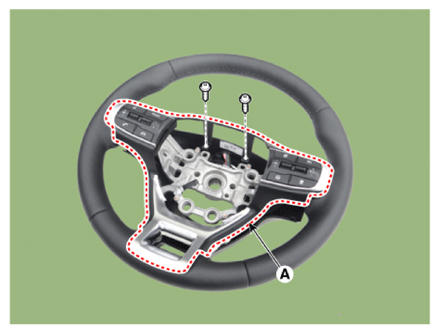

  4. Remove the steering wheel remote controller assembly (A) by loosening the mounting screws.
    G13835884Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the steering wheel remote controllers connectors (A).

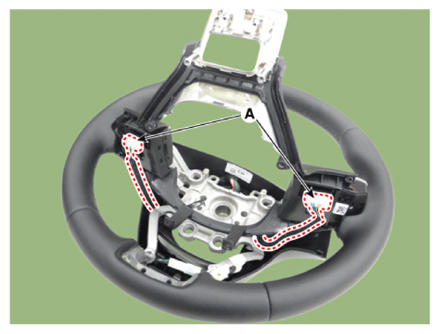

    G13835885Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the steering wheel remote controllers (A) by pushing the hooks in the direction of arrow.

    [LH]

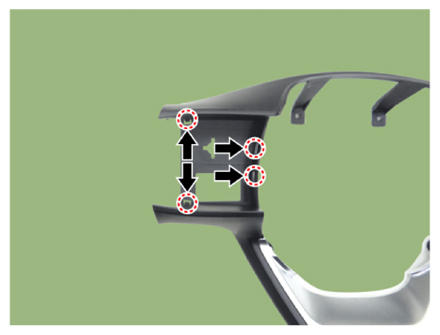

    G13835886Courtesy of KIA MOTORS AMERICA, INC.

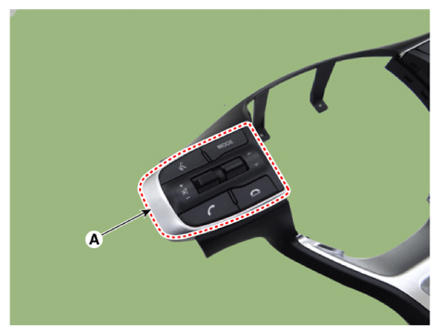

    G13835887Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

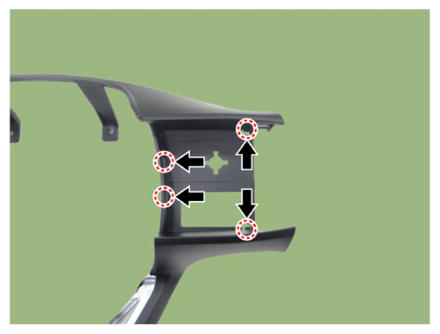

    G13835888Courtesy of KIA MOTORS AMERICA, INC.

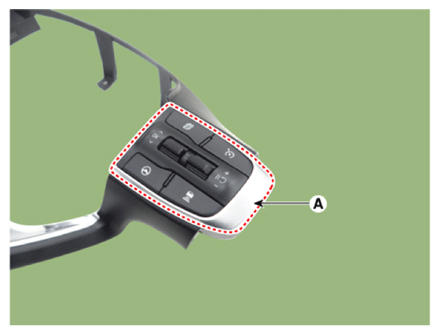

    G13835889Courtesy of KIA MOTORS AMERICA, INC.
