Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Remove the AVN/Audio head unit carefully not to scratch the cockpit in the top of the cluster.

Disconnect the negative battery terminal.
Remove the crash pad garnish [RH].
(Refer to " Crash Pad Garnish [RH] ")

Remove the audio head unit.

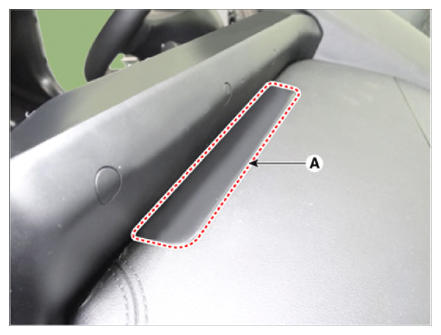

Remove the center fascia upper panel (A) by using a screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

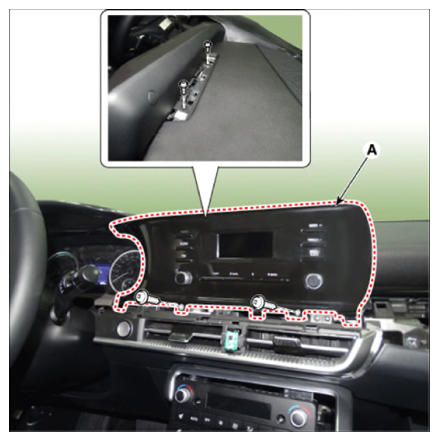

Remove the audio head unit (A)after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

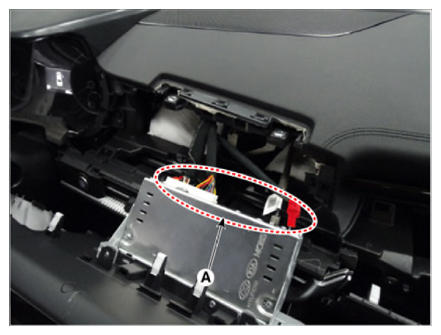

Disconnect the all connectors (A) from the audio head unit.

Courtesy of KIA MOTORS AMERICA, INC.
