Tweeter Speaker

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.

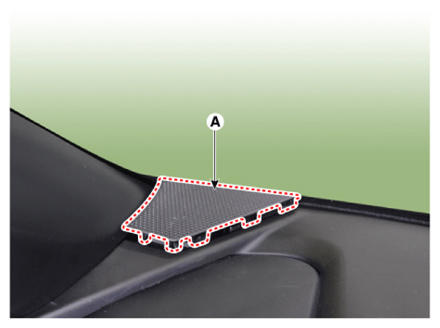

  2. Remove the tweeter speaker grille (A) by using a screwdriver or remover.
    G13835857Courtesy of KIA MOTORS AMERICA, INC.

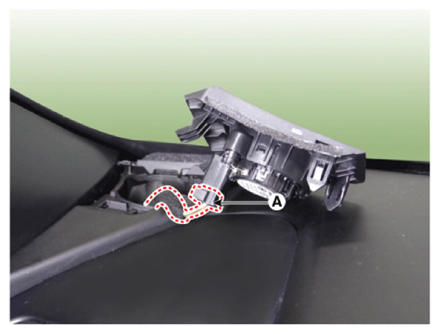

  3. R Disconnect the tweeter speaker connector (A).
    G13835858Courtesy of KIA MOTORS AMERICA, INC.

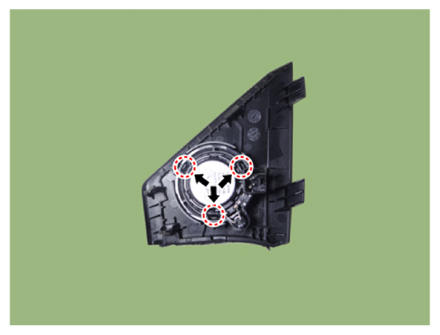

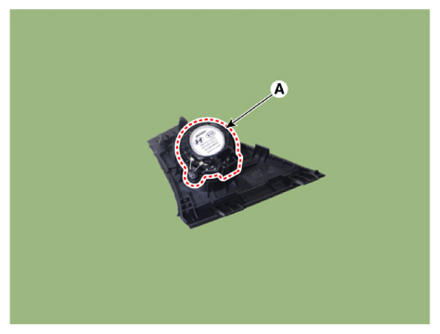

  4. Remove the tweeter speaker (A) by pushing the holder in the direction of arrow.
    G13835859Courtesy of KIA MOTORS AMERICA, INC.
    G13835860Courtesy of KIA MOTORS AMERICA, INC.
