Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to " Replacement  ")

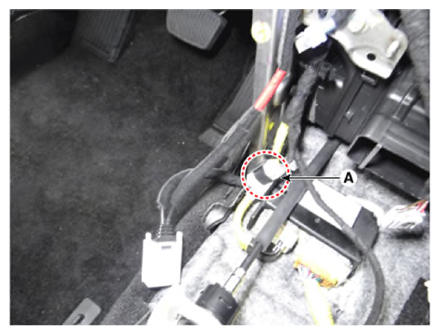

  3. Disconnect the multimedia jack connector (A).
    G13835894Courtesy of KIA MOTORS AMERICA, INC.

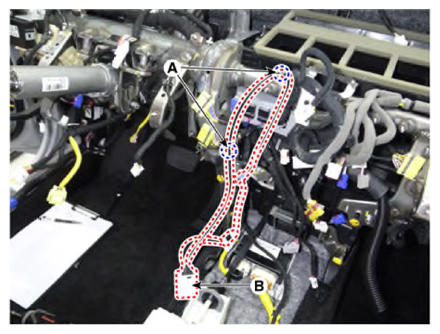

  4. Remove the multimedia wiring jack (B) after removing the fixing fasteners (A).
    G13835895Courtesy of KIA MOTORS AMERICA, INC.
