Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the right luggage side trim.

    (Refer to " Replacement  ")

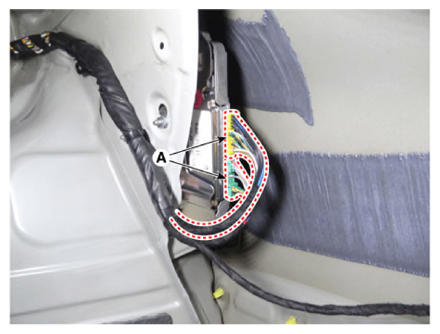

  3. Disconnect the external amp connectors (A).
    G13835873Courtesy of KIA MOTORS AMERICA, INC.

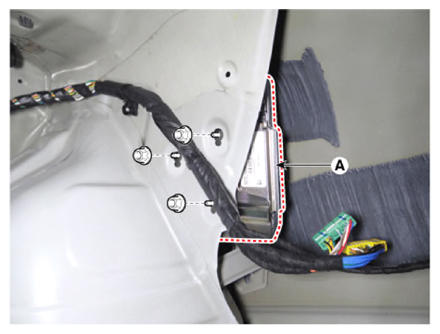

  4. Remove the external amp (A) by loosening the mounting nuts.
    G13835874Courtesy of KIA MOTORS AMERICA, INC.
