Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the steering column upper and lower shrouds.
(Refer to " Replacement ")
- Remove the steering wheel.
(Refer to " Removal ")

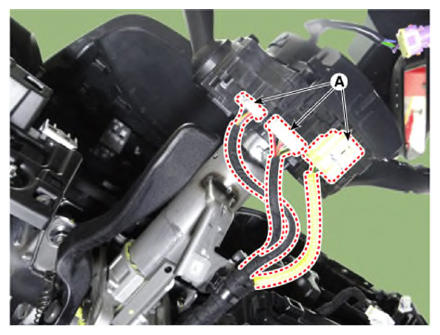

- Disconnect the all connector (A) from the multifunction switch.

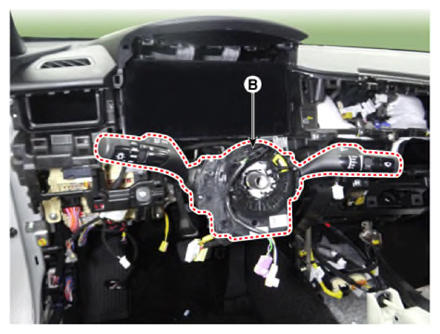

- Remove the multifunction switch (B) by loosening the mounting bolt (A).
Tightening torque:
7.8 - 8.8 N.m (0.8 - 0.9 Kgf.m, 5.8 - 6.5 lb.ft)
Information

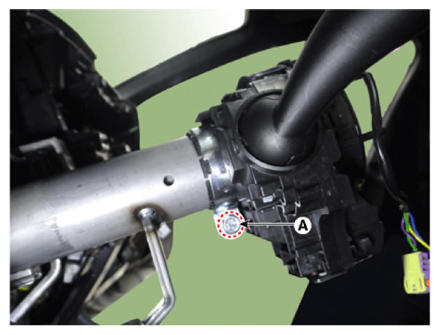

When install the multifunction switch, unscrew and reassemble the clamp bolt (A) to check for sound.
