Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If replacement of the rear corner radar unit bracket or extension wire is required, replace the defective part only with a new one.

Disconnect the negative (-) battery terminal.
Remove the rear bumper assembly.
(Refer to Body - " REAR BUMPER ASSEMBLY ")

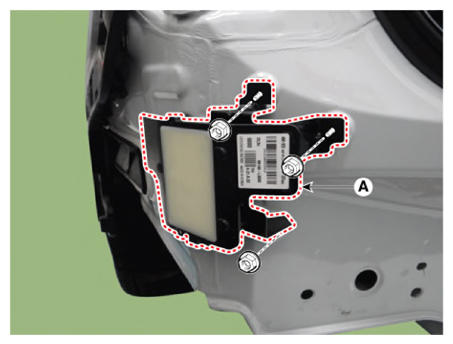

Remove the rear corner radar unit (A) by loosening the nuts.

Tightening torque:

8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

NOTE: Be careful not to damage the bracket when removing the rear corner radar unit.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: In the following cases, replace the extension wire or bracket.

If the bracket is physically deformed or damaged.

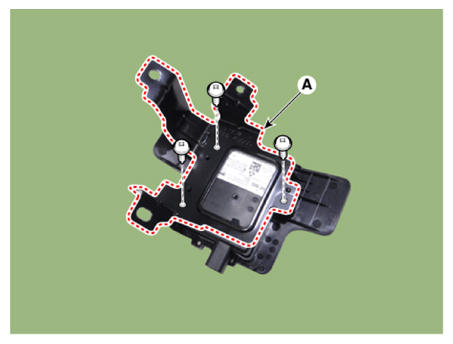

Remove the bracket (A) from the rear corner radar unit by loosening the screws.
