Components And Components Location: Components

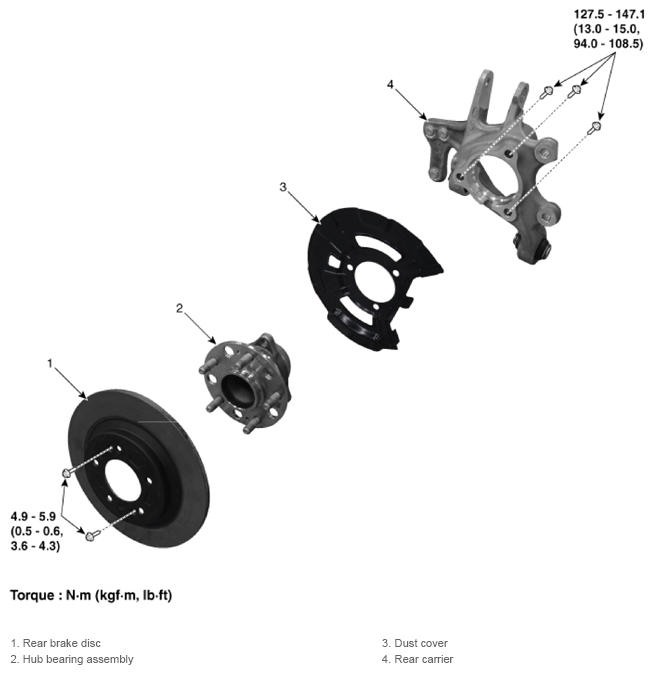

Fig 1: Rear Hub - Carrier Components Location With Torque Specification

G13834582

Courtesy of KIA MOTORS AMERICA, INC.
