Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Put on gloves to prevent hand injuries.

Remove the rear seat back assembly.
(Refer to " Rear seat back assembly ")
Remove the rear door pillar trim.
(Refer to " Replacement ")

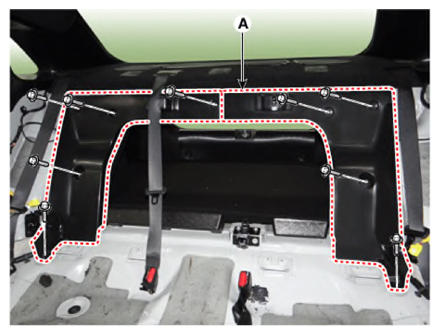

Loosen the mounting bolts and remove the luggage partition center trim cover (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear transverse trim.
(Refer to " Replacement ")
Remove the trunk lid weatherstrip.
(Refer to " Replacement ")

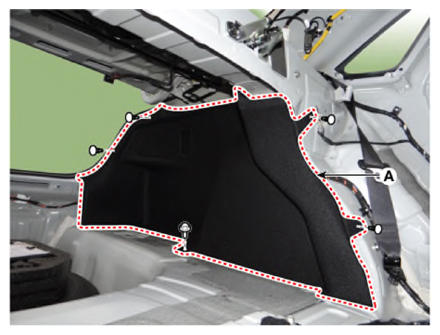

Loosen the mounting bolt and clips, remove the luggage side trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
