Tie Rod End

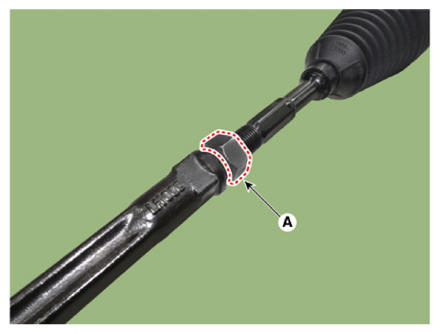

Loosen the tie rod end lock nut (A).
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

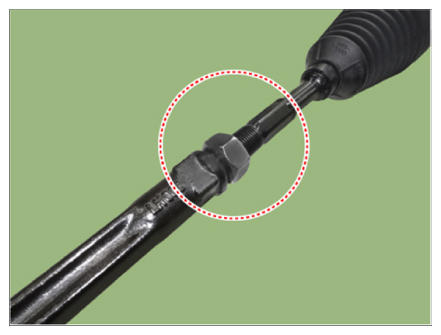

NOTE: For easier assembly, measure the length or mark with paint on the thread before loosening the tie rod end lock nut.

Courtesy of KIA MOTORS AMERICA, INC.

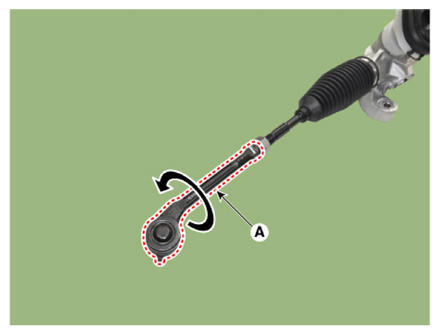

Remove the tie rod end (A) by loosening it in the counterclockwise.

Courtesy of KIA MOTORS AMERICA, INC.
Replace the tie rod end with a new one.
Check the alignment.
(Refer to " ALIGNMENT ")
