Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to " Replacement  ")

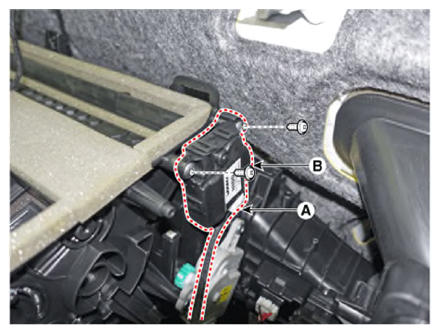

  3. Remove the auto defogging actuator (B) by loosening the screws after disconnecting the connector (A).
    G13836483Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
