Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the fender, wrap protective tape around a screwdriver or remover not to damage components.

Information

Removing or installing the hood requires an assistant.

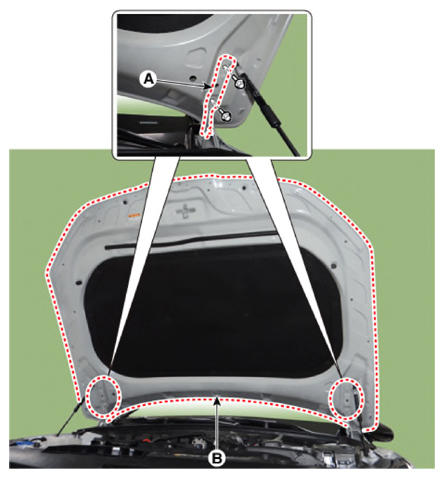

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9-19.5 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
