Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
Remove the front wheel and tire.
(Refer to " Removal ")

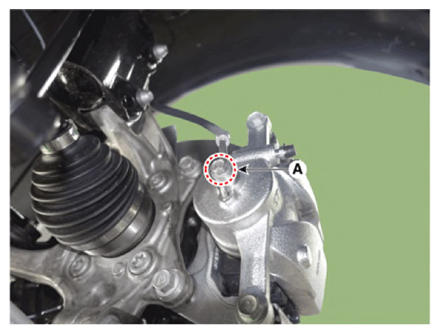

Remove the hose after loosening the brake hose bolt (A) from the c
Tightening torque:

24.5-29.4 N.m (2.5-3.0 kgf.m, 18.1 -21.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

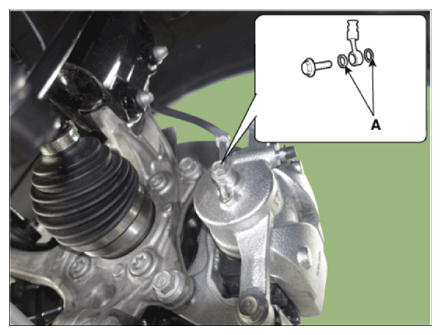

NOTE: Brake hose washer (A) must use the new one.

Courtesy of KIA MOTORS AMERICA, INC.

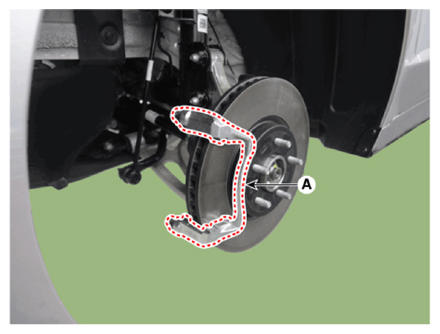

Remove the caliper body (A) by loosening the guide rod bolt.
Tightening torque:

21.6-31.4 N.m (2.2 -3.2 kgf.m, 15.9-23.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

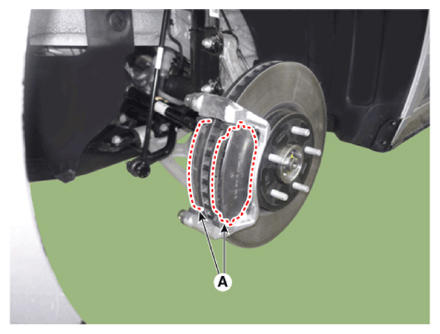

Remove the pad retainer (A).

Courtesy of KIA MOTORS AMERICA, INC.

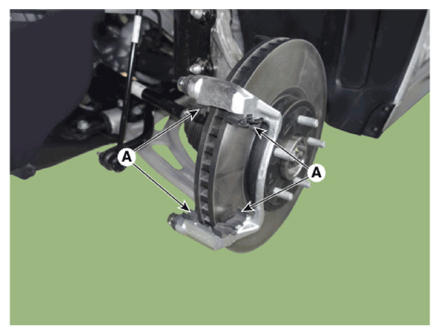

Remove the caliper carrier (A) by loosening the caliper mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the caliper carrier (A) by loosening the caliper mounting bolts.
Tightening torque:

98.1 -117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Caliper carrier mounting bolts must use the new one.
