Front Brake Pad

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
  2. Use SST (09581-11000) when installing the brake caliper assembly.
    NOTE:
    • Observe the following precautions when installing the inner brake pads, incorrect installation may cause noise or compromise brake performance.

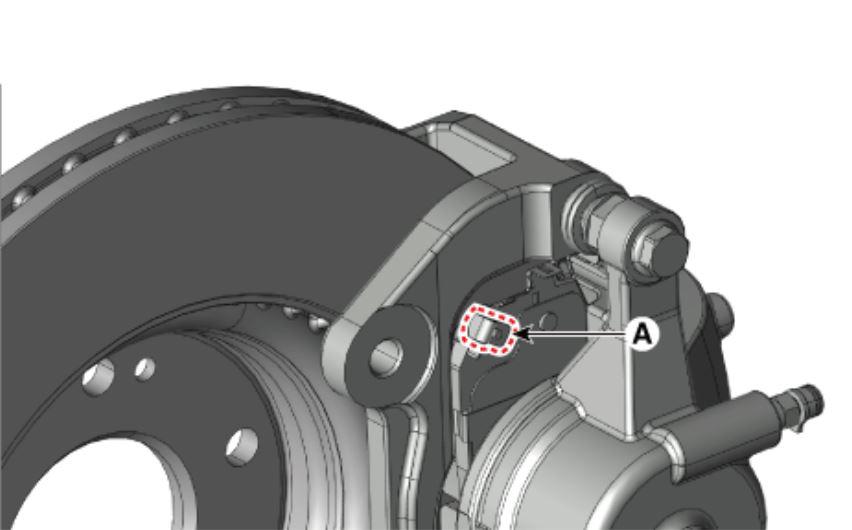

      • Make sure that the inner brake pad wear indicator (A) is facing up on the brake caliper.
        G00598150Courtesy of KIA MOTORS AMERICA, INC.
      • Make sure that the inner brake pad L (LH caliper) or R (RH caliper) marks are facing up on the brake caliper.
    • Carefully press it to avoid damaging the piston inlet.

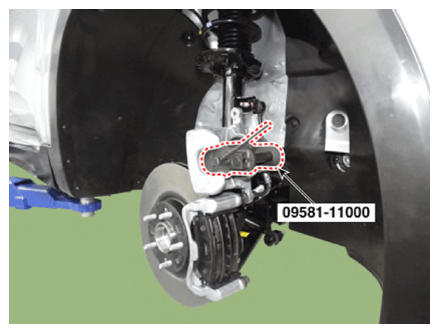

    • Make sure not to let the piston interfere when assembling the caliper body to the carrier.
    G13835253Courtesy of KIA MOTORS AMERICA, INC.
  3. After installation, bleed the brake system.

    (Refer to " 1st Air Bleeding (Normal Brake System)  ")

  4. Check the brake oil leakage and pedal operating condition.
