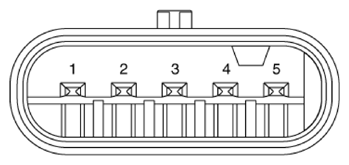

Connector And Terminal Function

G13833933Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Sensor power(5 V)
2 Sensor ground
3 Sensor signal
4 DC motor (+)
5 DC motor (-)
