Components Description
- Head Up Display: Electronic system that provides safety and convenience by displaying the vehicle information on the windshield glass to minimize movement of the driver's eye.

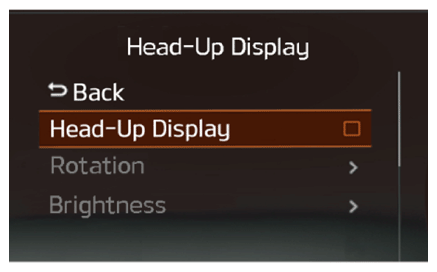

- HUD ON/OFF: There is no ON/OFF switch for Head Up Display. Enable/disable in user setting menu in instrument panel.

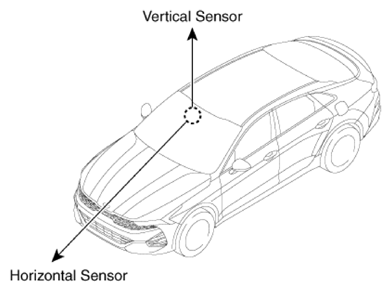

- Illumination Sensor: It is equipped with bidirectional (vertical and horizontal) sensor. HUD brightness is controlled depending on horizontal measurement (ambient brightness).
- Built-in bidirectional illumination sensor
Information
If illumination sensor measurement could not be detected, HUD will not be displayed. Check for normal operation of illumination sensor before inspecting HUD.
- Windshield glass: Windshield glass exclusive for Head Up Display is built in with double image removal film.
Information
- Use of window tinting film on windshield glass may decrease image quality
- Image may be distorted or seem dark if driver wears polarized sunglasses.
NOTE: When replacing front windshield glass, always replace with exclusive windshield glass for Head Up Display. Otherwise, the Head Up Display images may overlap.
