Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the console upper cover.

    (Refer to " Replacement  ")

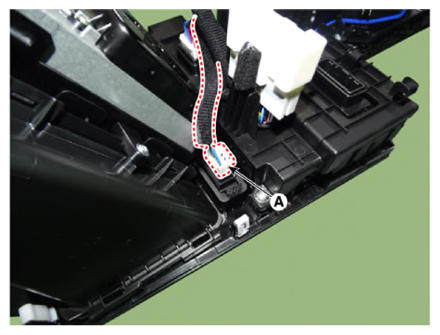

  3. Disconnect the wireless power charger indicator connector (A).
    G13835942Courtesy of KIA MOTORS AMERICA, INC.

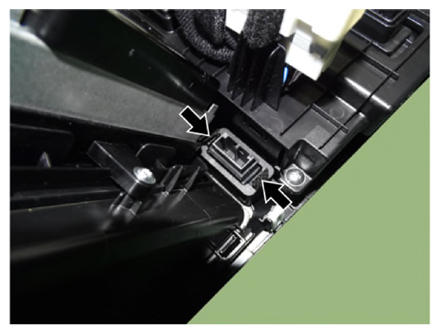

  4. Remove the wireless power charger indicator (A) by pressing the fixing hooks.
    G13835943Courtesy of KIA MOTORS AMERICA, INC.
    G13835944Courtesy of KIA MOTORS AMERICA, INC.
