Repair Procedures: Removal: [2WD]

  1. Disconnect the (-) battery terminal.
  2. Remove the rear wheel and tire.

    (Refer to " Removal  ")

  3. Disconnect the EPB actuator connector (A).

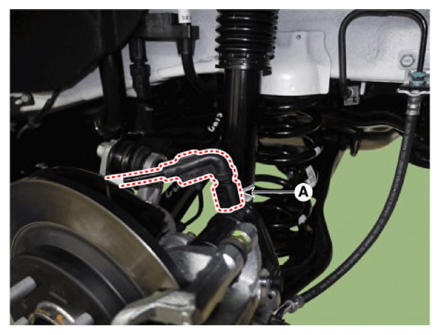

    G13835301Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the rear wheel speed sensor connector (A).

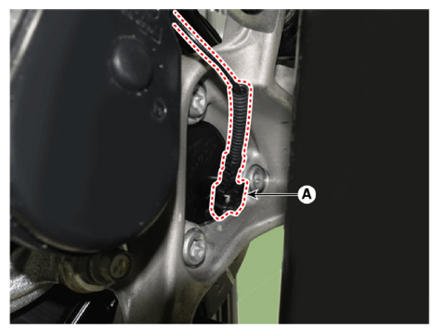

    G13835302Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fastener (A) and the bracket mounting bolt (B) and remove the rear wheel speed sensor line (C) from the trailing arm.

    Tightening torque:

    19.6-29.4 N.m(2.0-3.0kgf.m, 14.4-21.7 lb.ft)

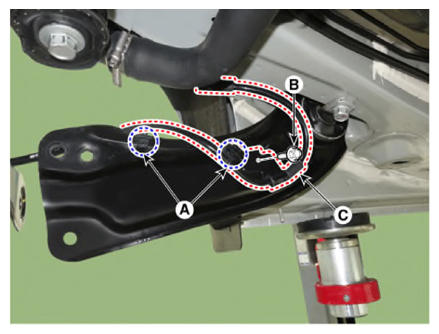

    G13835303Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the bracket mounting bolt (A) and disconnect the rear wheel speed sensor connector (B).

    Tightening torque:

    19.6-29.4 N.m(2.0-3.0kgf.m, 14.4-21.7 lb.ft)

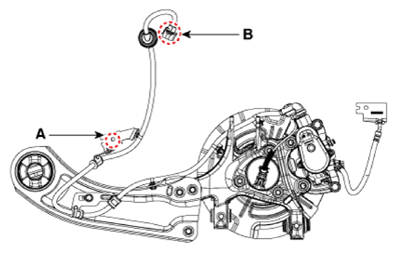

    G13835304Courtesy of KIA MOTORS AMERICA, INC.
