ESC Operation Mode: ESC/ESCi

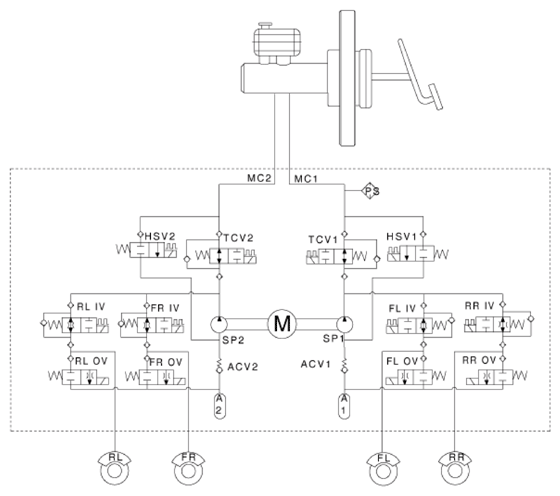

G13835271Courtesy of KIA MOTORS AMERICA, INC.
  1. ESC Non-operation: Normal braking.
    Solenoid Valve Continuity Valve Motor Pump TC Valve
    IN (NO) OFF OPEN OFF OFF
    OUT (NC) OFF CLOSE
  2. ESC operation
    Solenoid Valve Continuity Valve Motor Pump TC Valve
    Under steering (Only inside of rear wheel) IN (NO) OFF OPEN ON ON
    OUT (NC) OFF CLOSE
    Over steering
    (Only outside of front wheel)    		 IN (NO) OFF OPEN
    OUT (NC) OFF CLOSE
