Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Electrical >> Power Seat Control Switch >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Remove the front seat shield outer cover.

    (Refer to " Replacement  " )

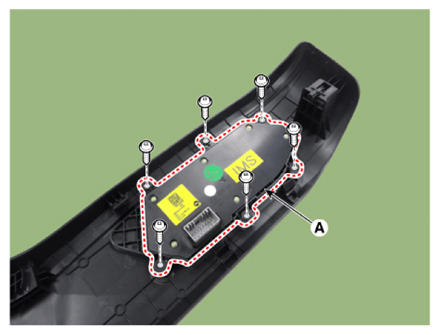

  2. Remove the power seat control switch (A) by loosening the mounting screws.
    G13836276Courtesy of KIA MOTORS AMERICA, INC.
