Repair Procedures: Removal

  1. Remove the front seat back.

    (Refer to " Replacement  ")

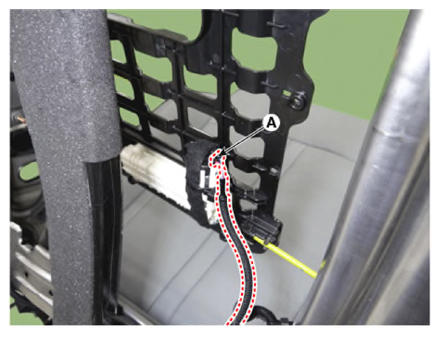

  2. Disconnect the connector (A) from lumbar support motor.
    G13836274Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the side airbag.

    (Refer to " Removal  " )

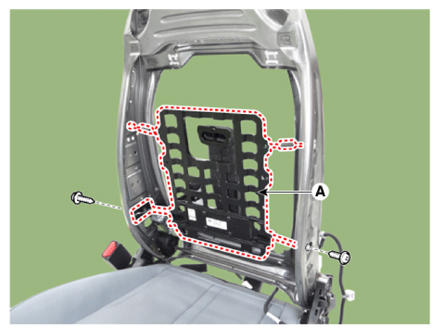

  4. Remove the lumbar support (A) after loosening the screws.
G13836275Courtesy of KIA MOTORS AMERICA, INC.
