Power Window Sub Switch

1. Disconnect the negative battery terminal.
2. Remove the passenger side front door trim.

   (Refer to " Replacement  ")

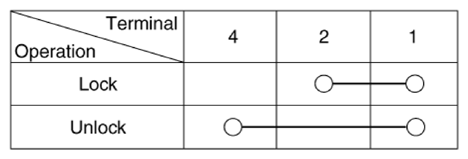

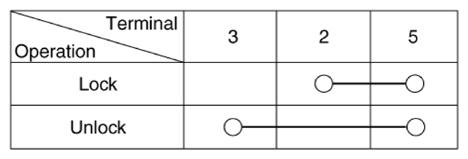

3. Check for continuity between the terminals in each switch position according to the table.

Courtesy of KIA MOTORS AMERICA, INC.

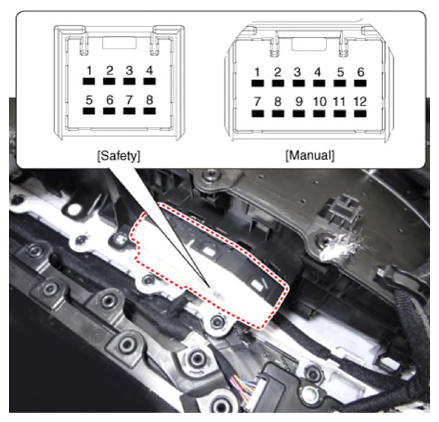

[Safety Type]

Courtesy of KIA MOTORS AMERICA, INC.

[Manual Type]

Courtesy of KIA MOTORS AMERICA, INC.
