Home >> Kia >> 2021 >> K5 EX >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control System (Cc) >> Schematic Diagrams >> System Block Diagram >> Notes

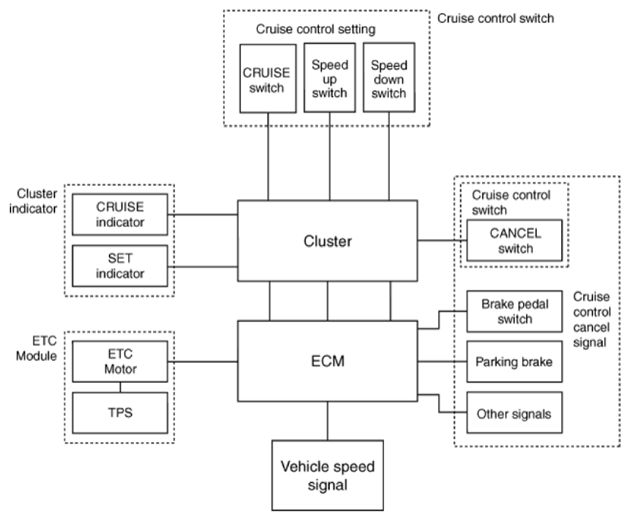

System Block Diagram: Notes

G13836685

Courtesy of KIA MOTORS AMERICA, INC.
