Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

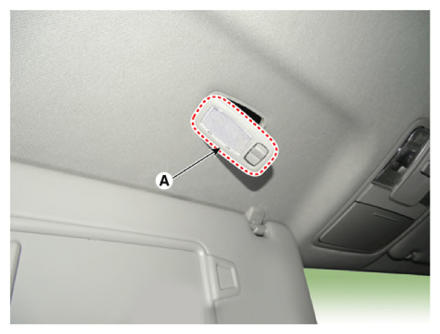

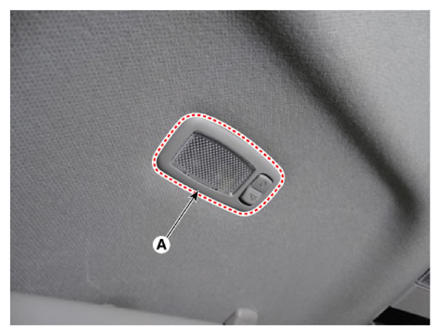

  2. Remove the room lamp lens (A) by using a screwdriver or remover.
    G14563982Courtesy of KIA MOTORS AMERICA, INC.
    G14563983Courtesy of KIA MOTORS AMERICA, INC.

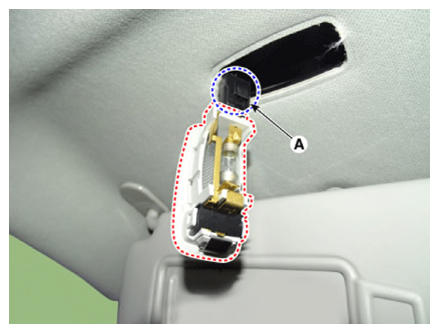

  3. Disconnect the vanity lamp connector (A).
    G14563984Courtesy of KIA MOTORS AMERICA, INC.
