Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

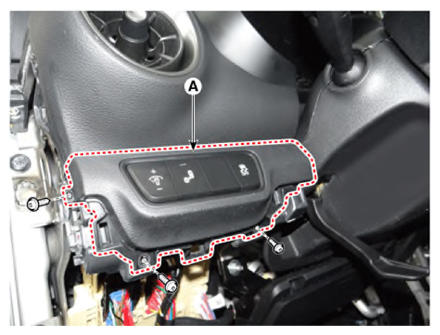

  3. Remove the side crash pad switch panel (A) after loosening the screws.
    G14564034Courtesy of KIA MOTORS AMERICA, INC.

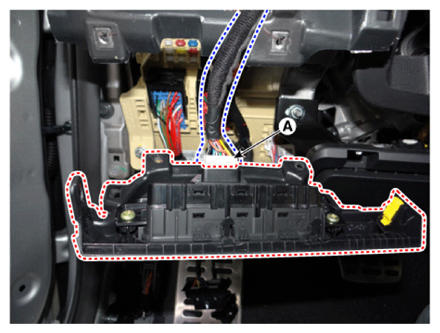

  4. Disconnect the side crash pad switch connector (A).
    G14564035Courtesy of KIA MOTORS AMERICA, INC.

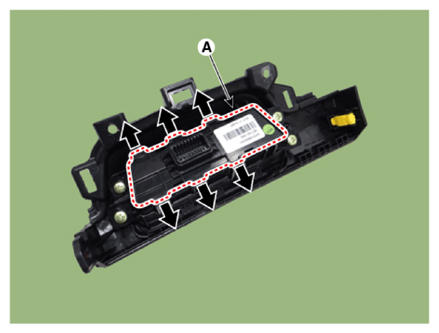

  5. Remove the side crash pad switch (A) after opening the holder in the direction arrow.
    G14564036Courtesy of KIA MOTORS AMERICA, INC.
