Repair Procedures: Adjustment: Headlamp
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
| Type | Vehicle condition | H1 | H2 | W1 | W2 | Note |
|---|---|---|---|---|---|---|
| Halogen | Without driver | 698 (27.48) | 1, 310 (51.57) | 1, 310 (51.57) | All DIM in mm (in) | |
| With driver | 688 (27.09) | |||||
| LED | Without driver | 696 (27.4) | 668 (26.3) | 1, 334 (52.52) | 1, 127 (44.37) | |
| With driver | 686 (27) | 658 (25.9) | ||||
- If headlamp leveling device is equipped, adjust the headlamp leveling device switch with 0 positions.
- Turn the low beam on without driver aboard.

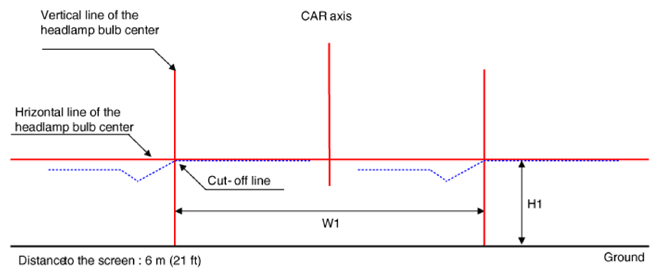

- The low beam cut-off line should be projected as shown in the illustration.
HeadLamp Aiming Guideline Headlamp (Center line) mounting height Nominal vertical aiming Aiming inspection limits for vertical aiming 56 - 90 cm (22 - 36 in) 0 10 cm (4 in) up to 10 cm (4 in) down 90 - 120 cm (26 - 48 in) 5 cm (2 in) down 5 cm (2 in) up to 5 cm (2 in) down 120 - 140 cm (48 - 54 in) 6.4 cm (4 in) down 4 cm (1.5 in) up to 16.5 cm (6.5 in) down - Turn the high beam on without driver aboard.

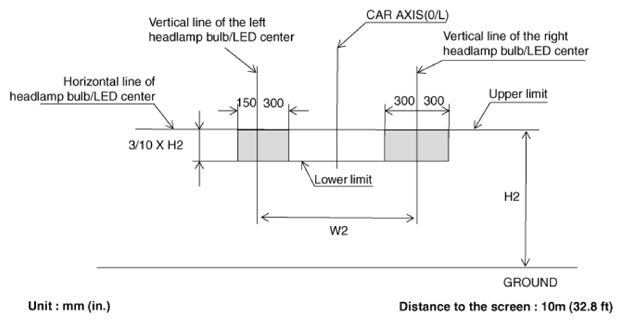

- The hot zone should be projected in the allowable range as shown in the illustration.
