Fog Lamp
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
| Vehicle condition |
H3 |
W3 |
Note |
| Without driver |
318 (12.52) |
1206 (47.48) |
All DIM in mm (in) |
| With driver |
308 (12.12) |

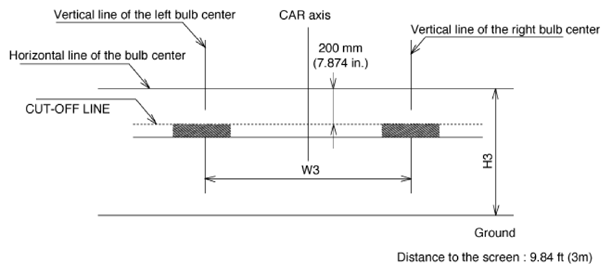

- Turn the front fog lamp on without the driver aboard.
- The cut-off line should be projected in the allowable range (shaded region).
 Courtesy of KIA MOTORS AMERICA, INC.
|
