Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

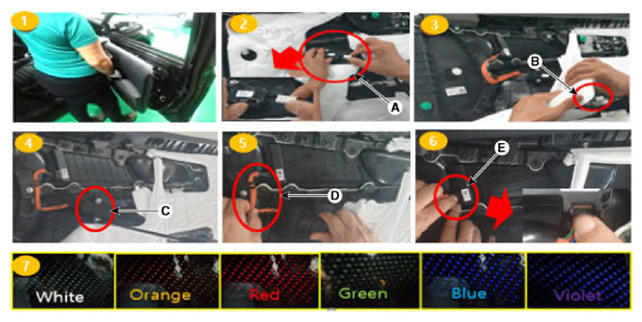

- Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
- Disconnect the connector (A) from the mood lamp unit.
- Separate the splice (B) of the sound proof surrounding the mood lamp unit.
- Loosen the mood lamp unit mounting screws (C).
- Remove the wiring harness fixing hooks (D).
- Remove the mood lamp unit by pressing the fixing hook (E) of the connector.
Information
- Check the conjunction status by pushing it until it clicks and pulling the wire harness.
- Use hot-melt (glue-gun) when attaching the surface.
- Set the interior brightness to the maximum, when checking the mood lamp light status, and check color by color.
