Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing it with a remover, wrap a protective tape around it to prevent damage to the parts.

Disconnect the negative (-) battery terminal.
Remove the crash pad center garnish assembly.
(Refer to Body - "CRASH PAD CENTER GARNISH ASSEMBLY ")

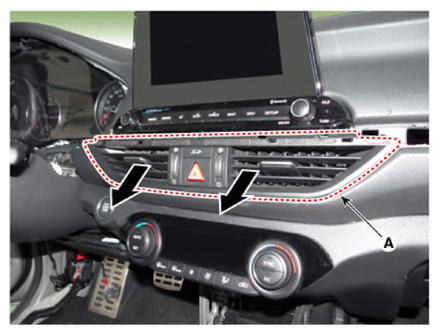

Remove the center fascia vent (A).

Courtesy of KIA MOTORS AMERICA, INC.

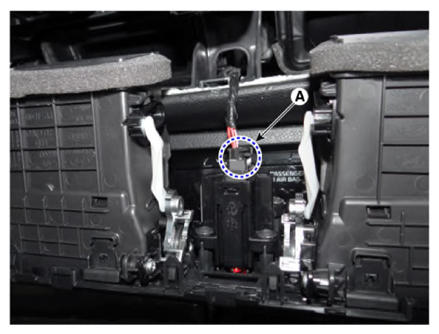

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

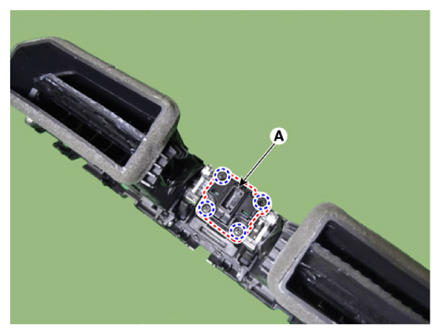

Remove the hazard lamp switch (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.
