Removal And Installation

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch OFF and disconnect the battery (-) terminal.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

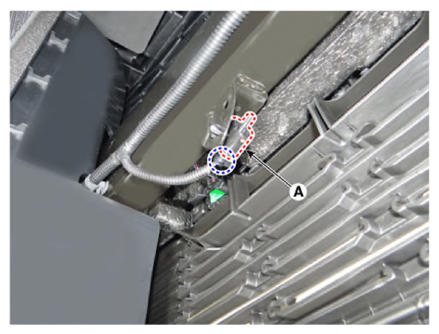

Disconnect the connector and then remove the ambient temperature sensor (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE: If the Ambient Temperature Sensor (ATS) is dropped, it may internal damage. (Do not reuse)
