Repair Procedures: Removal

NOTE: If replacement of the bracket or extension wire of blind-spot radar unit is required, it is recommended to surely replace the defective part only with a new one, not the whole blind-spot radar unit.

Disconnect the negative (-) battery terminal.
Remove the rear bumper assembly.
(Refer to Body - "REAR BUMPER ASSEMBLY ")

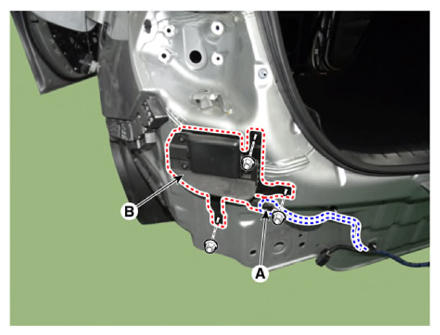

Disconnect the connector (A) and then remove the blind-spot radar unit (B) by loosening the nuts.

Tightening torque:

8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

NOTE: Be careful not to damage the bracket when removing the BCW unit.

Courtesy of KIA MOTORS AMERICA, INC.

Information

In the following cases, replace the extension wire or bracket.

If the bracket is physically deformed or damaged.

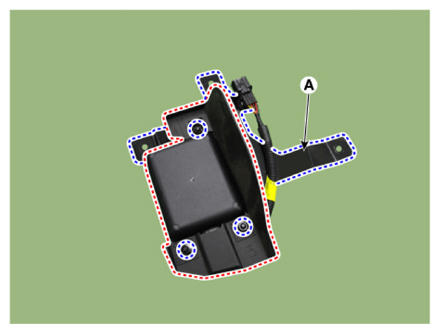

Remove the bracket (A) from the BCW unit by loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

If the connector or wire is damaged.

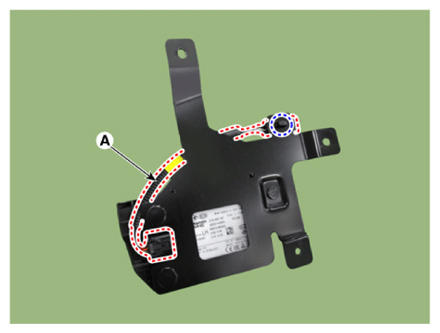

Remove the extension wire (A) after separating the mounting clip.

Courtesy of KIA MOTORS AMERICA, INC.
