Repair Procedures: Removal

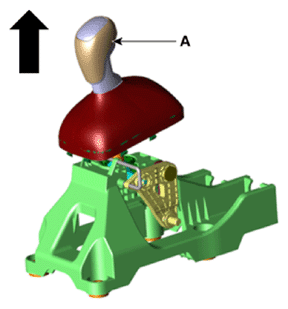

  1. Remove the knob (A) by pulling it in the direction of upward after removing the boots from the console upper cover.
    G13304030Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the select cable.

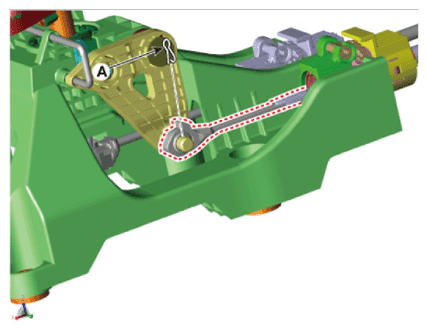

    1. Remove the snap pin (A).
      G13304031Courtesy of KIA MOTORS AMERICA, INC.

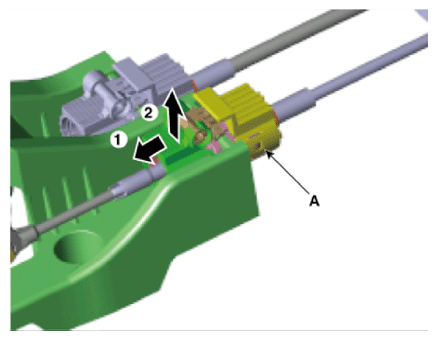

    2. Remove the select cable (A) from the shift lever.
    G13304032Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shift cable.

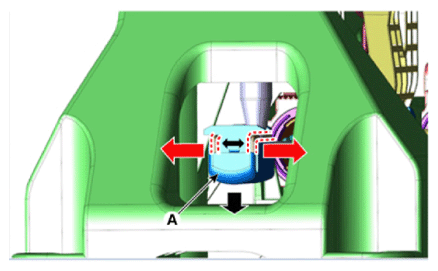

    1. Remove the snap pin (A) in the direction of the arrow.
      G13304033Courtesy of KIA MOTORS AMERICA, INC.

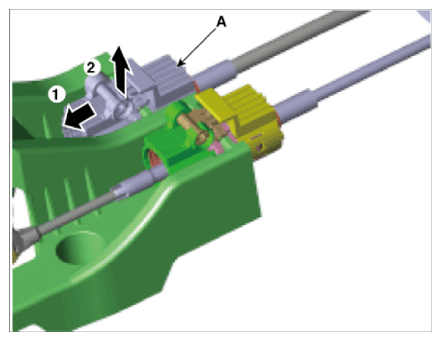

    2. Remove the shift cable (A) from the shift lever.
    G13304034Courtesy of KIA MOTORS AMERICA, INC.

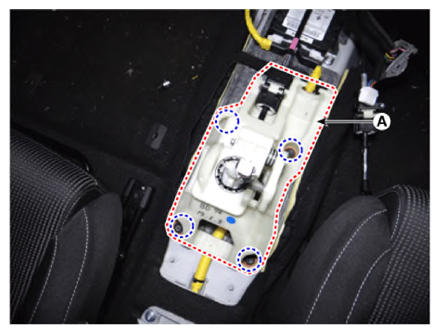

  5. Remove the shift lever assembly (A) after loosening the mounting bolts.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13304035Courtesy of KIA MOTORS AMERICA, INC.
