Test For Changing Position Of Each Ignition Coil

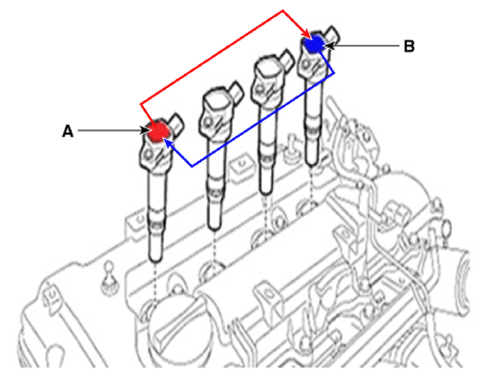

  1. Ignition coil w/misfire code
  2. Ignition coil w/o misfire code
    NOTE: Do not move with spark plug at the same time (move the ignition coil only)
    G13303621Courtesy of KIA MOTORS AMERICA, INC.

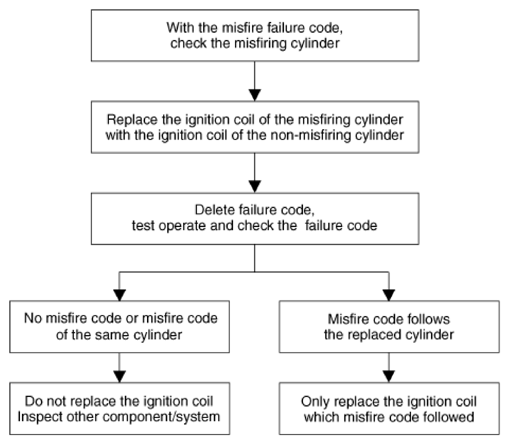

    G13303622Courtesy of KIA MOTORS AMERICA, INC.
