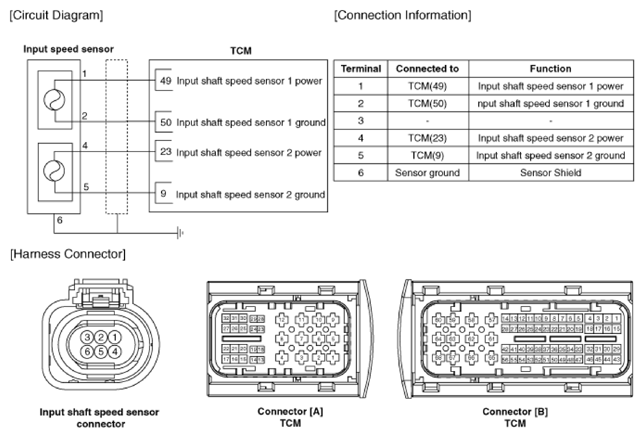

Home >> Kia >> 2021 >> Forte GT, Automatic DCT Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System - 1.6L >> Input Speed Sensor 1 >> Schematic Diagrams >> Circuit Diagram
