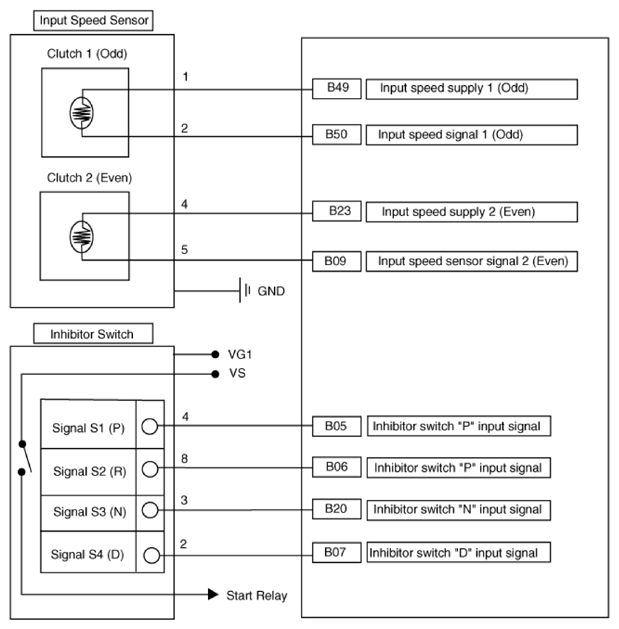

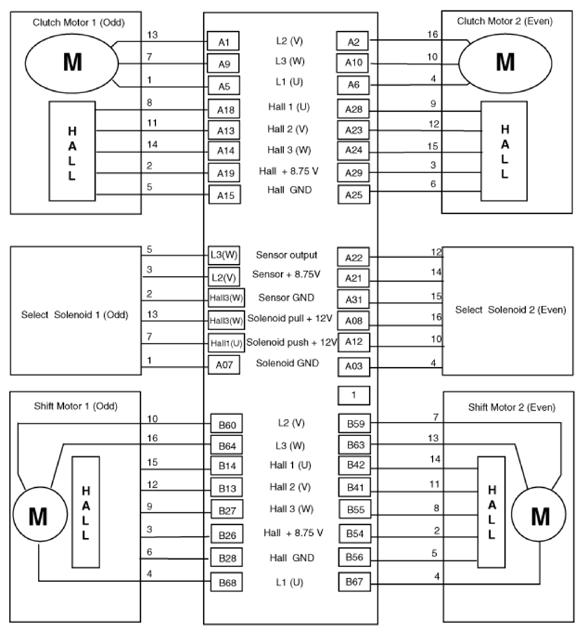

Home >> Kia >> 2021 >> Forte GT, Automatic DCT Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System - 1.6L >> DCT Control Module (TCM) >> Schematic Diagrams >> Terminal Input/Output Signal >> Circuit Diagram
