Section 4 (Engine Control System - 2.0L)
>>
Accelerator Position Sensor (APS)
>>
Schematic Diagrams
>>

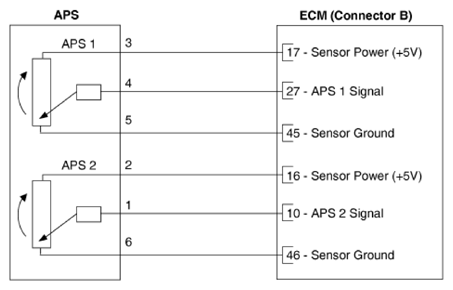

Circuit Diagram
>>
Notes
Circuit Diagram: Notes
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
