Home >> Kia >> 2021 >> Forte GT Line >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System >> Evaporator Temperature Sensor >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Turn the ignition switch OFF.
  2. Disconnect the evaporator temperature sensor connector.

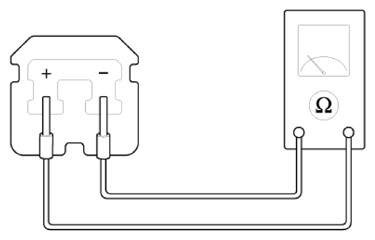

  3. Measure the resistance between terminal "+" and "-" of the evaporator temperature sensor.
    G13306412Courtesy of KIA MOTORS AMERICA, INC.
