Repair Procedures: Inspection

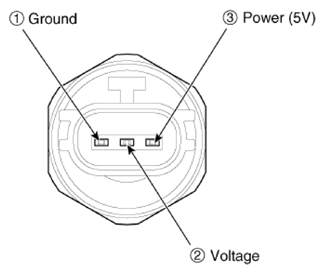

  1. Measure the pressure of high pressure line by measuring voltage output between terminal "1" and "2".
    G13306408Courtesy of KIA MOTORS AMERICA, INC.
  2. Inspect the voltage value whether it is sufficient to be regular value or not.

    Voltage = 0.00878835 * Pressure + 0.37081095

  3. If the measured voltage value is not within specification, replace the A/C pressure transducer.
