Repair procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

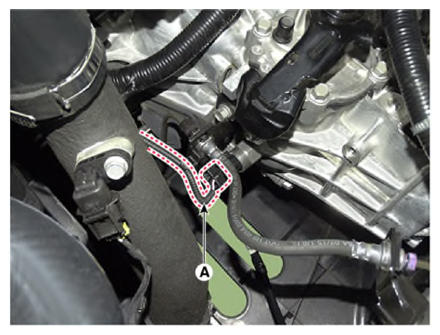

  2. Disconnect the neutral switch connector (A).
    G13304083Courtesy of KIA MOTORS AMERICA, INC.
  3. Check the continuity between power terminal and signal terminal.
    G13304084Courtesy of KIA MOTORS AMERICA, INC.
