Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft damper pulley.

    (Refer to Drive Belt System - "CRANKSHAFT DAMPER PULLEY ")

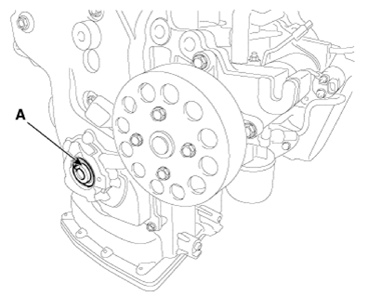

  2. Remove the front oil seal (A).
    G13303472Courtesy of KIA MOTORS AMERICA, INC.

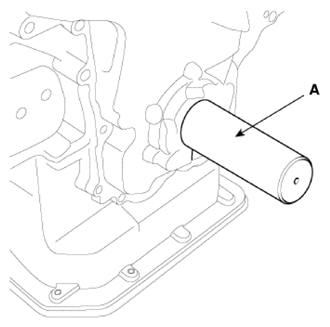

  3. Using the SST (09455-21200) (A), install a new front oil seal.
    G13303473Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
    NOTE: Insert the oil seal into the timing chain cover as shown in illustration
    G13303474Courtesy of KIA MOTORS AMERICA, INC.
