Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Open the fuel filler door.
Turn ignition switch OFF and disconnect the battery negative (-) terminal.

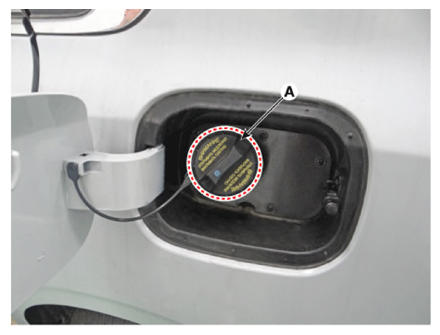

Remove the fuel filler cap (A) after opening the fuel filler door.

Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.

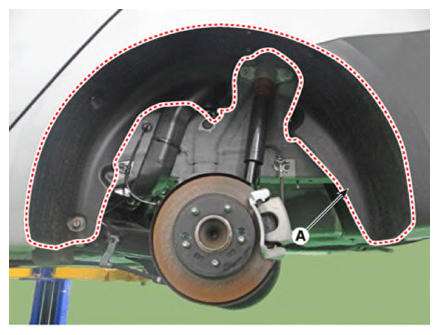

Remove the rear-LH wheel, tire, and the inner wheel house (A).

Courtesy of KIA MOTORS AMERICA, INC.

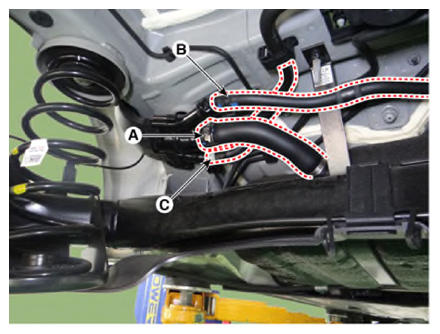

Disconnect the fuel filler hose (A), the leveling tube quick-connector (B) and the ventilation hose (C).

Courtesy of KIA MOTORS AMERICA, INC.

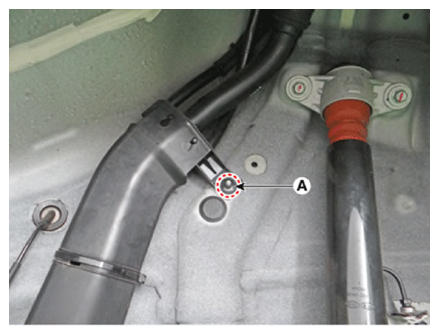

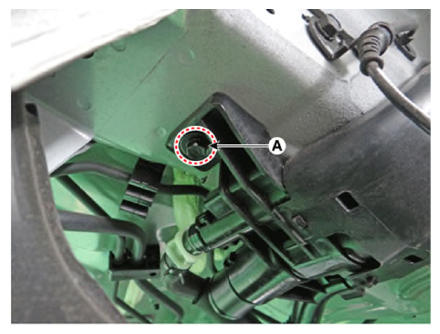

Remove the filler-neck assembly after loosening the mounting bolt and nut (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kickoff, 5.7 - 8.7 webfoot)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
