Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON"
  1. Connect KDS to Data Link Connector (DLC).

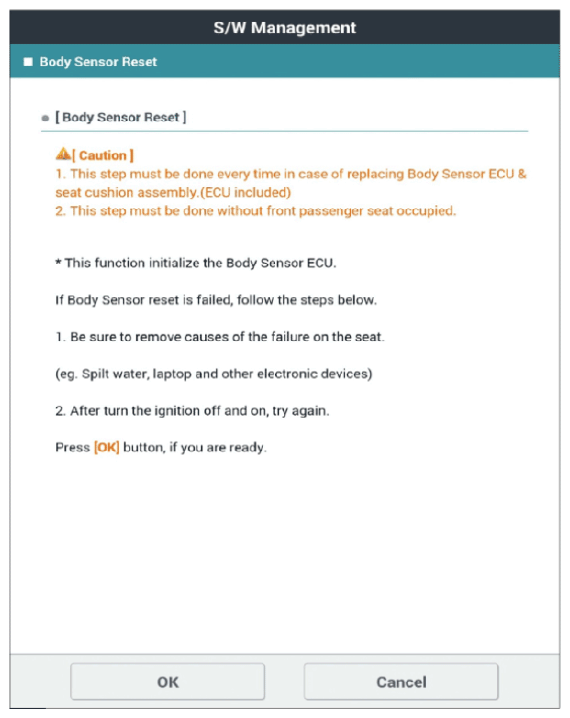

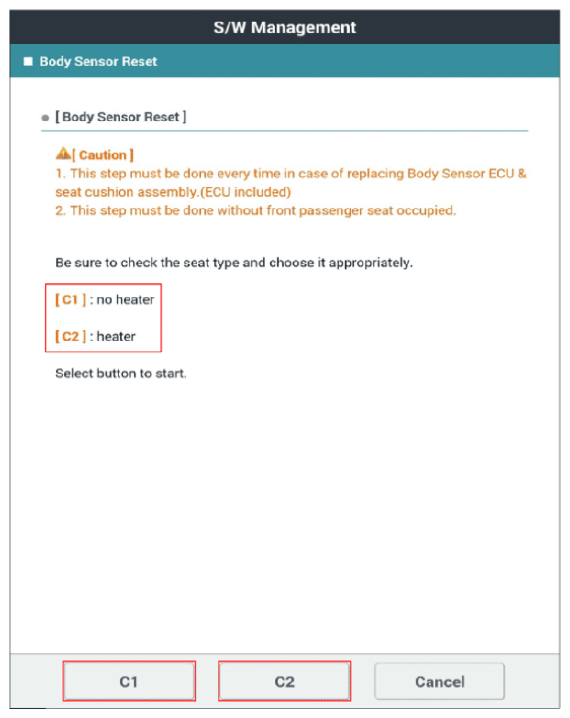

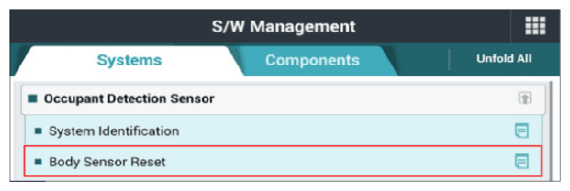

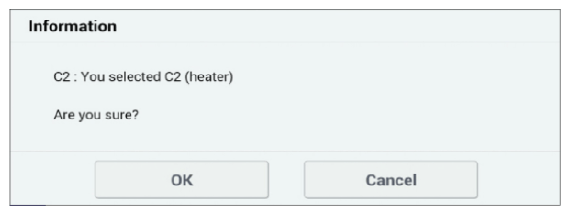

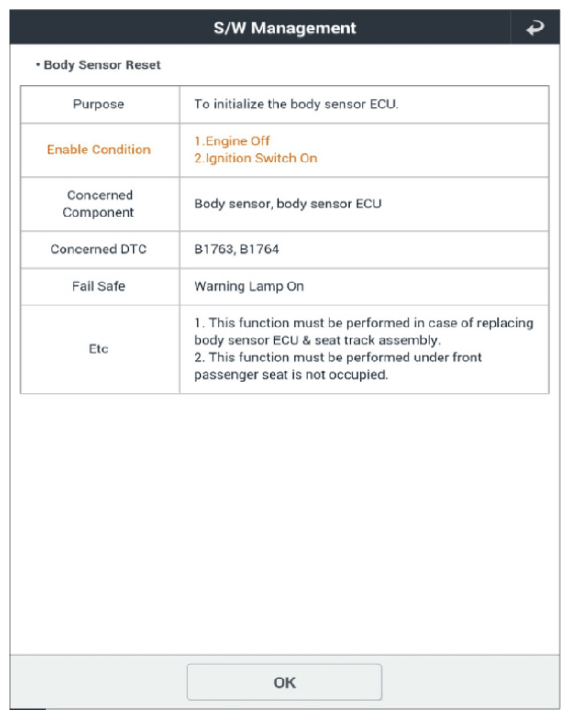

  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6
G14568717Courtesy of KIA MOTORS AMERICA, INC.
G14568718Courtesy of KIA MOTORS AMERICA, INC.
G14568719Courtesy of KIA MOTORS AMERICA, INC.
G14568720Courtesy of KIA MOTORS AMERICA, INC.
G14568721Courtesy of KIA MOTORS AMERICA, INC.
G14568722Courtesy of KIA MOTORS AMERICA, INC.
